How I did it

Design of the hexagonal grid.

For this demo I wanted to explore hexagonal grids, and how can they be implemented. I decided to have a grid generator as open as possible. Some of the features of this generator are:

• There are two ways to display an hexagon: top side flat (the top is an edge) or top side pointy (the top is a vertex). The generator handles both instances.

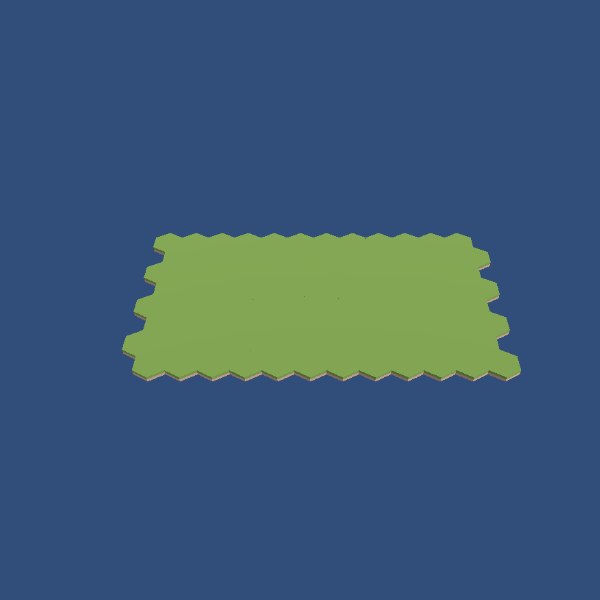

• It can generate two types of grid: rectangular (with x rows and y columns) or hexagonal (with n rings).
• The grid is composed of a series of Nodes that are linked to each others via Paths.
• The nodes are stored in a List, but traversing the list is not supported. The only way to traverse between Nodes is through their paths.

As for the Node, it contains its position, a list of all the paths it shares with other Nodes and a reference to the tile (the actual GameObject) it holds. On the other hand, a Path is a connection between an in_node (the Node it belongs to), an out_node (the neighbouring Node) and a cost (for pathfinding purposes).

This implementation works as it is but, in its current state, it is not very efficient. For instance, for each two adjacent Nodes, there are two different Paths, from one Node to the other and viceversa. This can be reducted two one Path and, when traversing, take into consideration the current node you are in. Another possible optimization could be to remove the Paths alltogether and use an adjacency matrix with the cost to move from one node to others.

Procedural generation of the world using the Wave Function Collapse Algorithm.

The Wave Function Collapse algorithm is a generative algorithm that is bases on the restrictions between adjacent pixels/tiles. It has been widely used to generate 2D images, tilemaps and even 3D models.

My implementation of the algorithm is a mix of all the sources I found when researching about the algorithm adapted to the hexagonal grid that I am using and the overall idea of the world I want to generate.

The first iteration of the algorithm that I implemented had as input:

• A list of the modules that could be placed in each tile.
• A list of adjacency rules that dictaminated which module could be placed next to which module.
• A list with the weights of the modules. The bigger the weight, the more probable a module is of being picked.

This implementation was functional, but it was not escalable at all. For each module I added, I had to add all the adjacency rules between that module and the rest of the modules. With each module added, the task became increasingly tiresome.

On the second iteration, I discarded the adjacency rules list entirely. Instead, I defined an enum of the types of elements that populated the map (grass, forest, mountains, cities, water, path, etc.) And, for each edge of the module, defined a list of compatible types that could be placed next to that edge. For example, a forest edge can only be placed next to a forest edge, but a hill edge can be placed either next to a grass, a hill or a mountain edge.

With this implementation, I do not have to define the behaviour of each module with the rest of the modules. Now I just have to define, for each side of the new module, the compatible types. Making the task much more easy. Moreover, this change resulted in a huge optimization for the algorithm, as now I didn't have to search in the rules list for all the rules related to the tile.

Road generation using A*.

I want the cities generated to be connected between each others as naturally as possible. At first, I tried to generate the roads with the WFC algorithm, however, this added so much complexity to the algorithm that the number of viable solutions dropped significantly. Moreover, the roads generated were not very natural, nor optimal.

Therefore, I decided to use an A* pathfinding algorithm to generate the roads between the cities. It is now in its first iteration and, for now, it only generates the optimal path between every city. This aproximation, even if it achieves the goal, does not take into account pre-existing roads. So you can find in a situation where two roads are parallel for a great distance to the same city, when they could have been merged.

I am currently working in a variation of the algorithm to resolve this issue. I am testing some of these options when generating a road from one city to another:

• Give priority to tiles that have already a path in it (lowering their cost for example).
• For each node explored, check all the neighbouring nodes and if any is part of a road, check if the road leads to the target city. If this is the case, merge with the road and end the search.
• For each node explored, check all the neighbouring nodes and, if any node is a city, check if the city has already a road to the target city. If this is the case, lead the road to that city and end the search.

Current implementation of the pathfinder.
